GreenLeaf FORCE 700 Max Macerator Pump
FREE NZ SHIPPING | 24-MONTH WARRANTY | 7-DAY NZ SUPPORT
More power. More distance. Maximum versatility.
The GreenLeaf FORCE 700 Max marks the step up into our high-performance FORCE Series.
Designed for longer pipe runs, greater vertical lift and more demanding residential installations, the Force 700 Max combines a powerful 700W motor with up to 150 L/min flow, 11 metres vertical lift and an impressive 110 metres horizontal discharge.
It gives you serious pumping performance while retaining the versatility of a conventional residential macerator — making it an excellent choice for larger bathrooms, kitchens, laundries, remote fixtures and installations where the sewer connection is significantly further away.
Maximum performance without moving to a grinder.
Connect Almost Any Domestic Wastewater Fixture
The Force 700 Max can handle one toilet plus compatible domestic greywater fixtures, including:
The pump operates automatically as wastewater enters the unit and is designed for human waste, toilet paper and normal domestic wastewater from bathroom, kitchen and laundry fixtures.
One toilet only may be connected to each macerator pump.
Why Choose the FORCE 700 Max?
700W High-Performance Motor
More power for installations that require greater pumping capability.
150 L/min Maximum Flow
Higher wastewater handling capacity than our Flow Series models, making the Force 700 Max an excellent choice for larger or more demanding multi-fixture installations.
Up to 11m Vertical Lift
Ideal where wastewater needs to be pumped significantly upward before reaching the main drainage system.
Up to 110m Horizontal Discharge
Provides outstanding flexibility where the nearest suitable sewer connection is a long distance from the new bathroom, kitchen or laundry.
90°C Maximum Water Temperature
Well suited to normal domestic bathroom, kitchen and laundry applications where warmer wastewater may be encountered.
FORCE 700 Max Highlights
-
700W motor
-
150 L/min maximum flow
-
Up to 11m vertical lift
-
Up to 110m horizontal discharge
-
Automatic start / stop
-
90°C maximum water temperature
-
100°C thermal protection
-
IPX4 rated
-

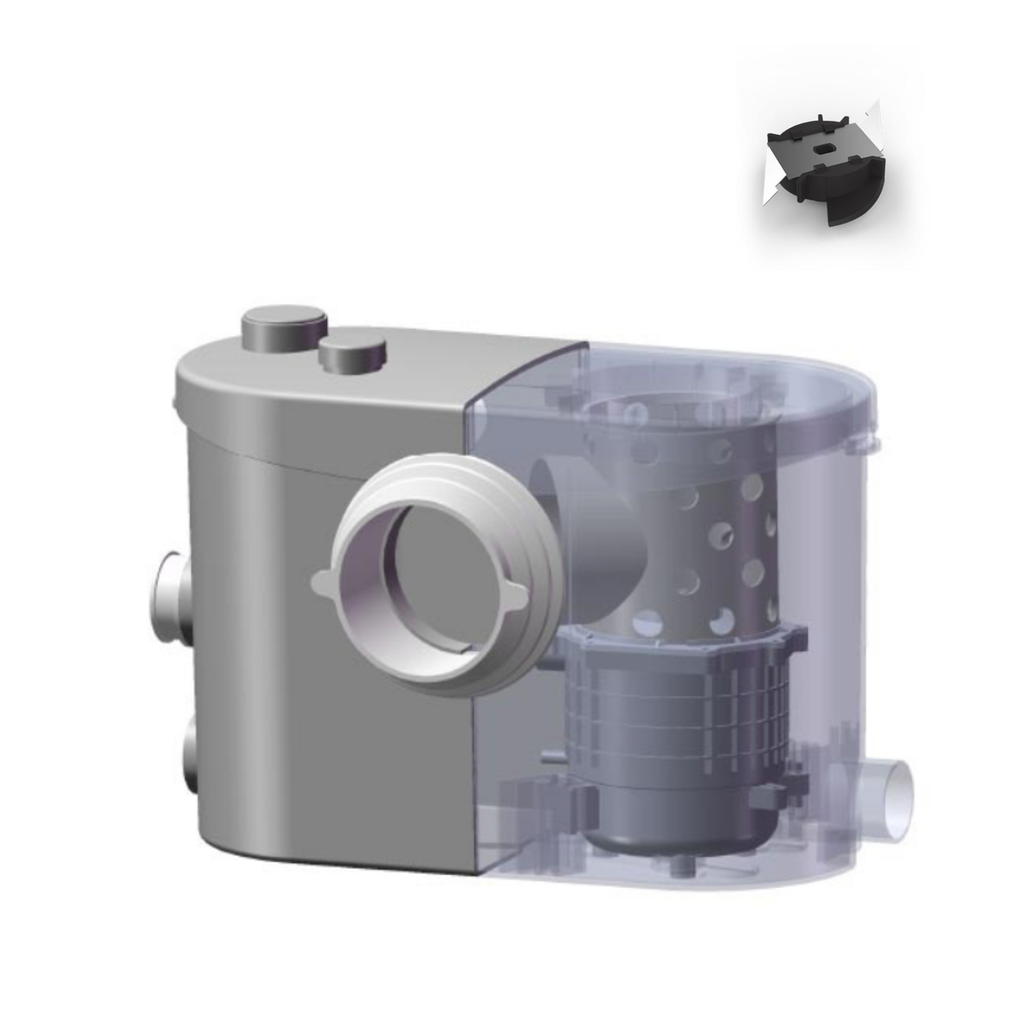

304 stainless steel cutting blade
-
100mm toilet inlet
-
Multiple 40mm greywater inlets
-
23 / 28 / 32 / 40mm discharge options
-
Carbon breather
-

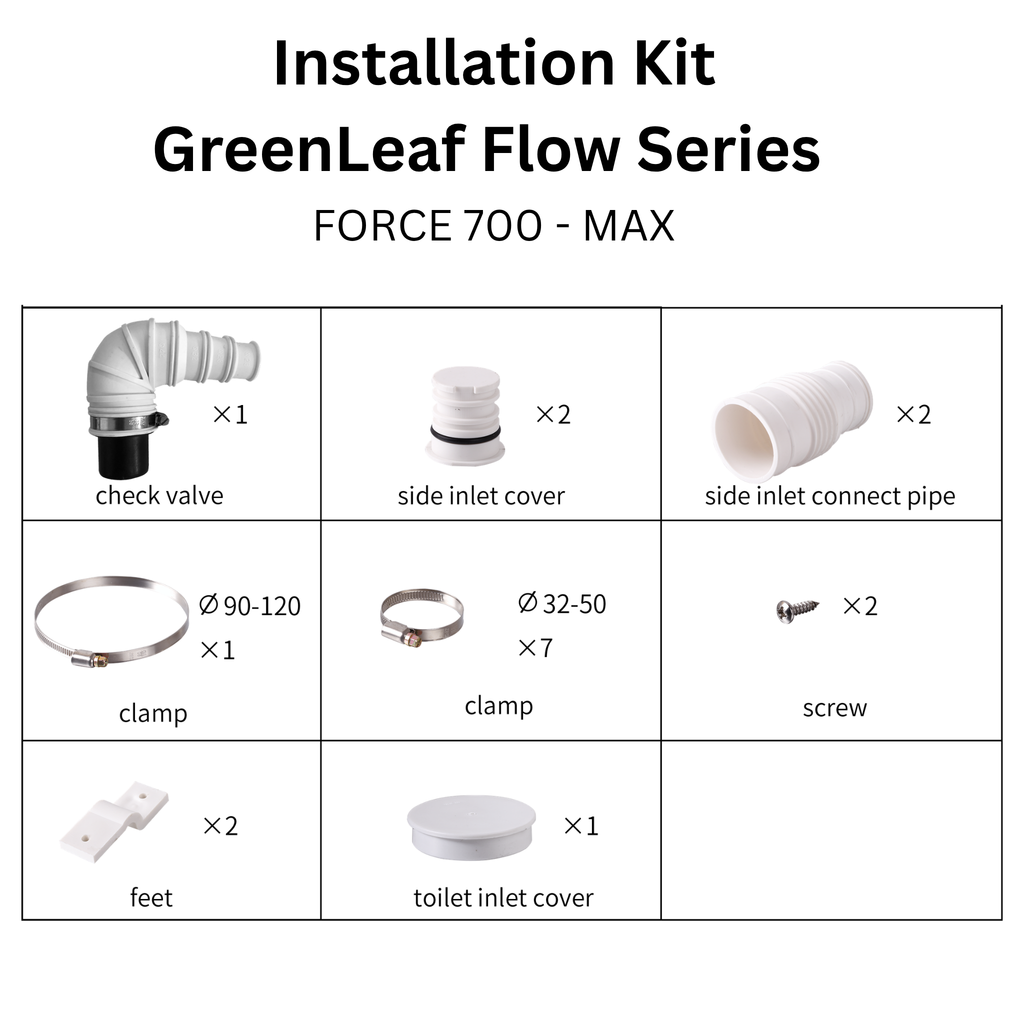

Supplied non-return valve
-
24-month residential warranty
-
Free NZ shipping
-
NZ-based parts, servicing and support

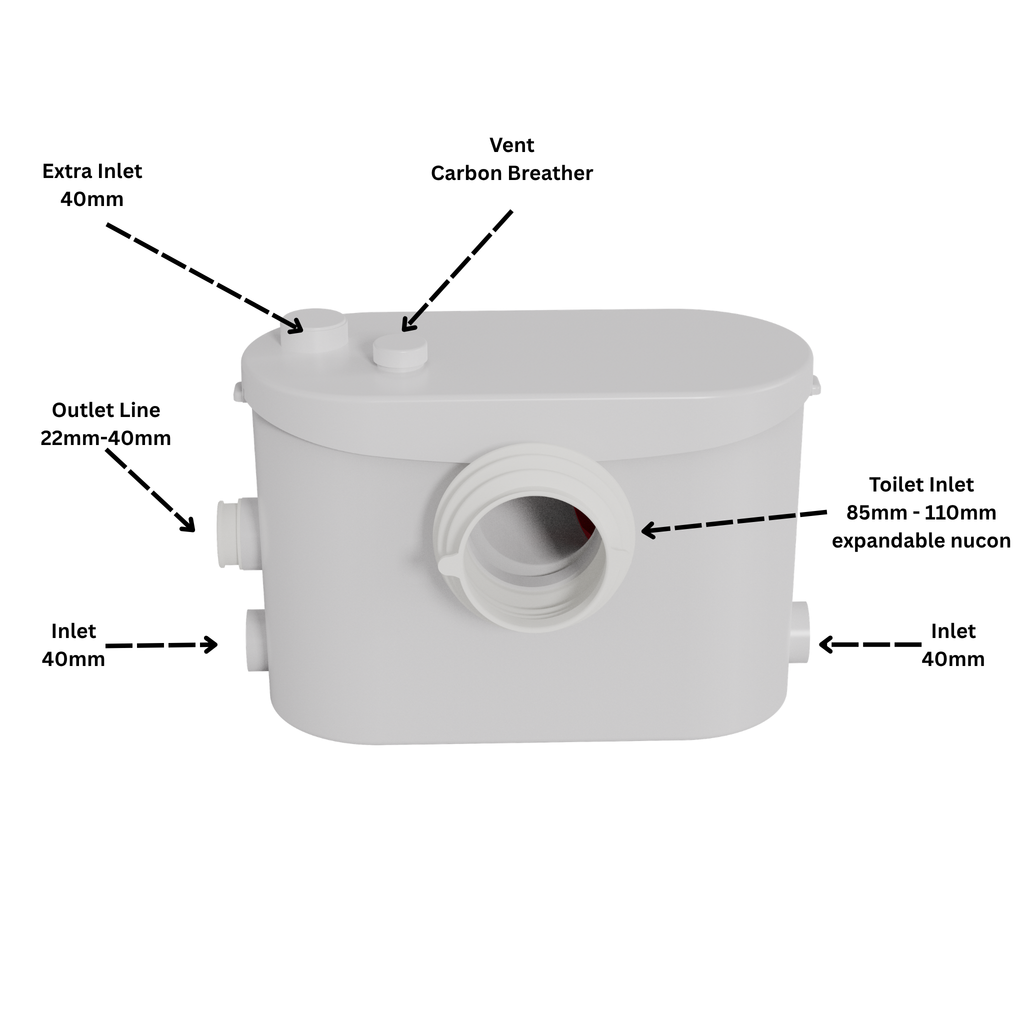

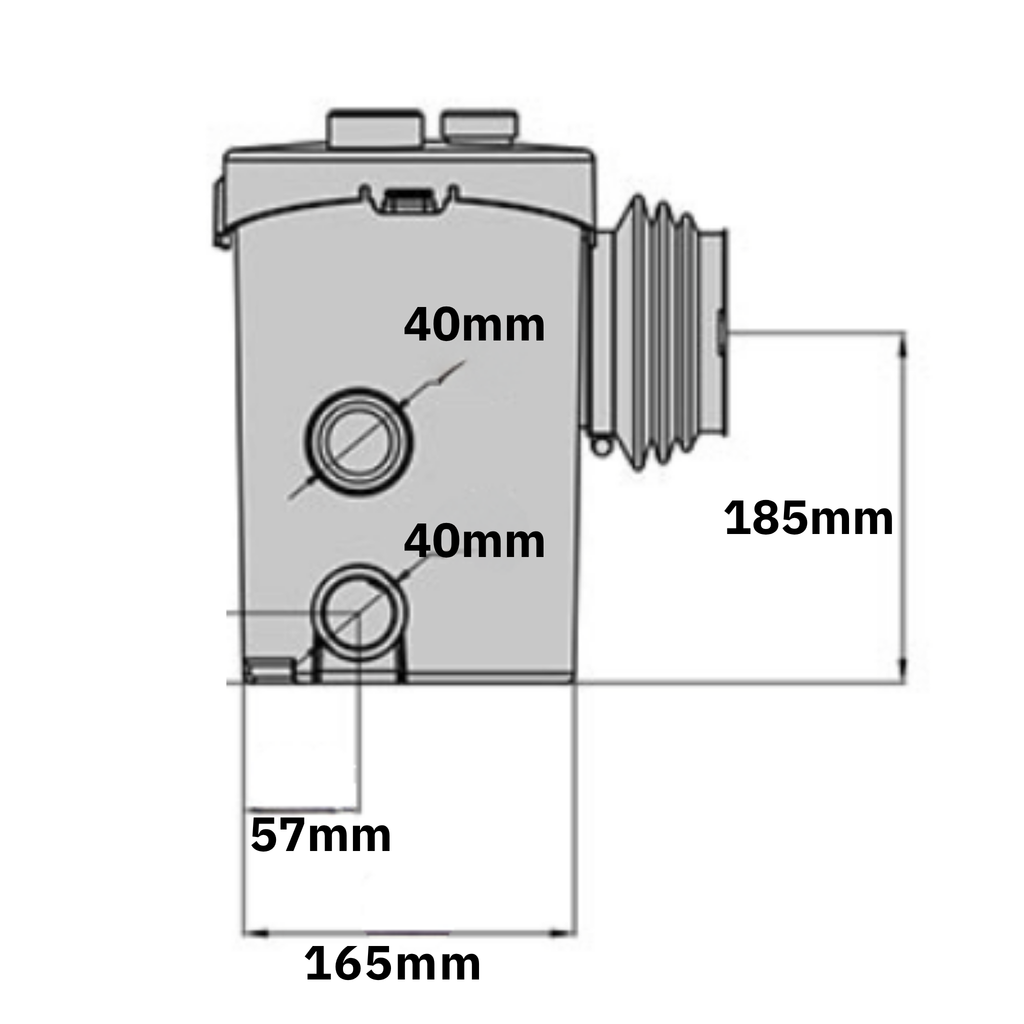

The Max uses a 100mm toilet connection, multiple 40mm auxiliary inlets and adaptable 23 / 28 / 32 / 40mm discharge connection.
Technical Specifications
Power: 700W
Power Supply: 220–240V / 50Hz
Maximum Flow: 150 L/min
Maximum Vertical Lift: 11m
Maximum Horizontal Distance: 110m
Maximum Water Temperature: 90°C
Thermal Protection: 100°C
Protection Rating: IPX4
Operation: Automatic
Toilet Inlet: 100mm
Greywater Inlets: 40mm
Discharge: 23 / 28 / 32 / 40mm
Application: High-performance residential maceration and wastewater pumping
Important: 11m vertical and 110m horizontal are separate maximum performance ratings — they should not be treated as simultaneously achievable. Pipe diameter, lift, distance, bends and installation layout all affect actual performance.
Bathrooms, Kitchens & Laundries
The Force 700 Max isn't limited to bathroom installations.
It can receive compatible wastewater from kitchens, laundries and other normal domestic greywater fixtures, making it particularly useful where several fixtures need to be installed some distance from the existing sewer connection.
For kitchen applications, always use a suitable sink strainer.
Do not allow food scraps, cooking fats, oils or grease to enter the pump.
A macerator is not a food waste disposal system.
Built for the More Difficult Installations
The Force 700 Max is particularly suited to situations such as:
-
Longer discharge pipe runs
-
Greater vertical rises
-
Bathrooms located well away from existing drainage
-
Basement or below-drain installations
-
Remote sleepouts and cabins
-
Large ensuite or bathroom installations
-
Combined bathroom / laundry layouts
-
Renovations where conventional drainage would be difficult or expensive
If your installation is pushing the limits of a standard macerator, this is where the FORCE Series starts to make sense.
Important Installation Points
Correct installation is critical, particularly on longer pumping runs.
-
All connected greywater fixtures must drain naturally by gravity toward the pump
-
Allow adequate pipe fall into the macerator
-
When connecting a shower to a side inlet, allow approximately 150mm between the shower waste outlet and finished floor level
-
Install the supplied non-return valve at the pump discharge
-
Where vertical lift is required, complete the vertical section before the horizontal run
-
Use sweeping bends or 2 x 45° bends rather than tight 90° elbows
-
Every bend introduces additional resistance and reduces available pumping performance
-
Keep the pump accessible for future servicing
-
Keep all unused inlet connections correctly sealed

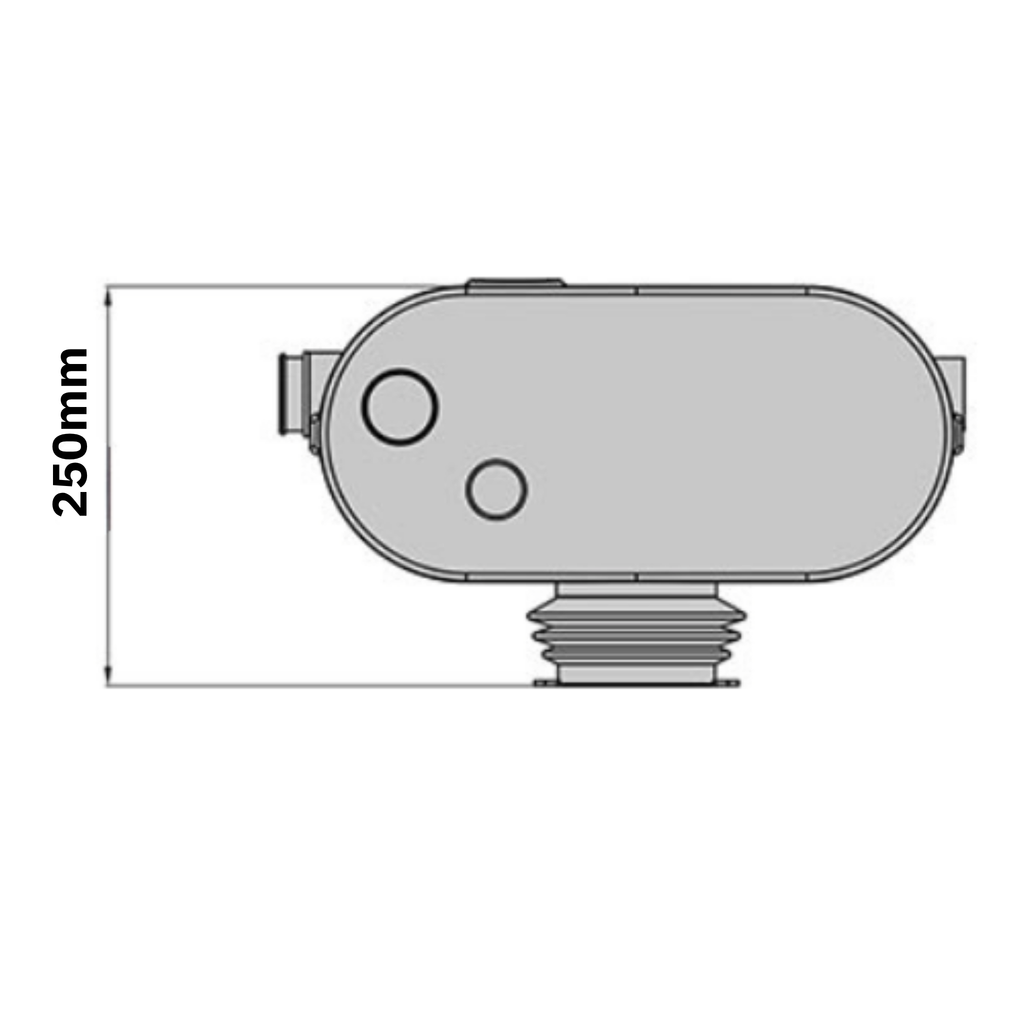

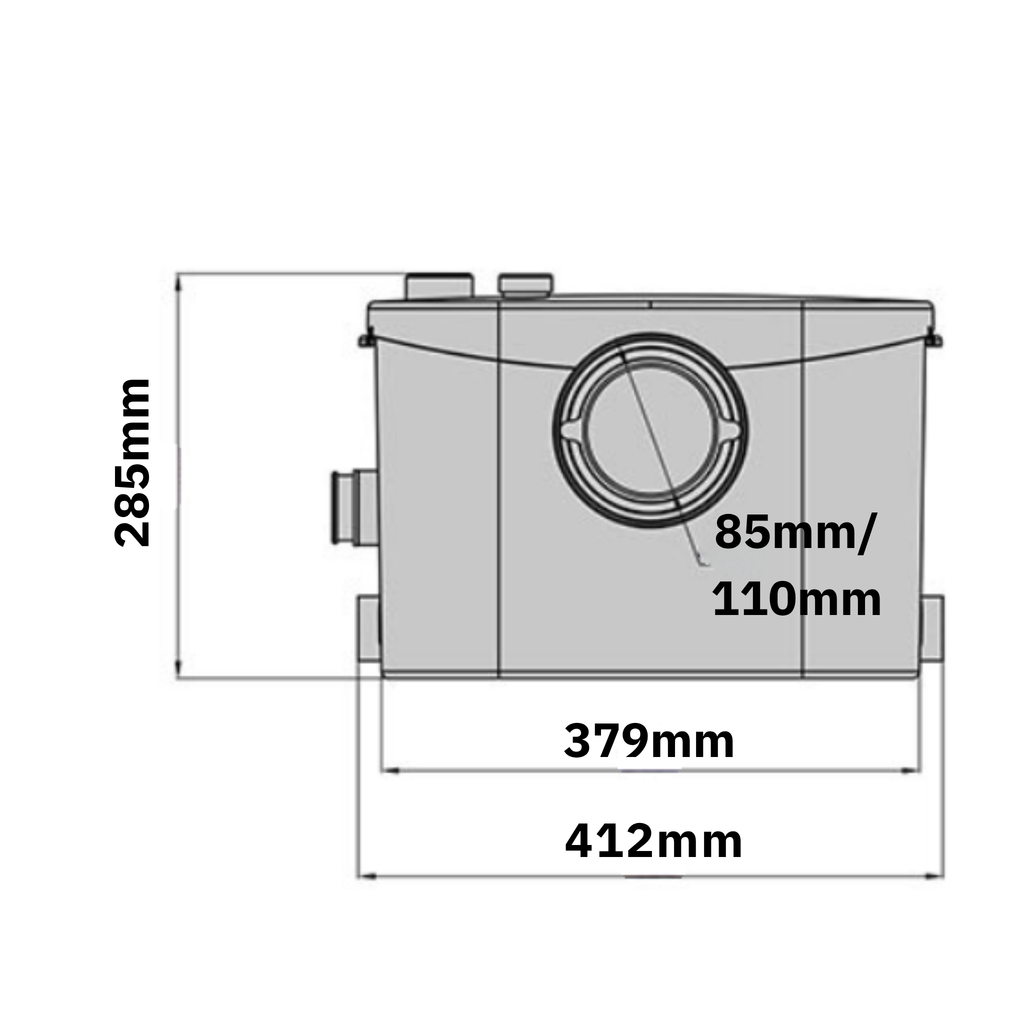

Allow approximately 205mm minimum clearance between the toilet outlet and rear wall for installation.
We strongly recommend installation by a qualified plumber or appropriate trade professional.
Planning a long or difficult run?
Call us before ordering.
With higher-performance installations, factors such as vertical lift, pipe diameter, horizontal distance and number of bends matter.
We are available 7 days a week and can help you select the correct GreenLeaf pump for the job.
0800 110 063
Simple Preventative Maintenance
The Force 700 Max requires very little routine maintenance when correctly installed and used.
Every 3–4 months
Run a diluted Sugar Soap solution through a connected fixture, allow it a short time to loosen soap and organic build-up, then flush thoroughly with clean warm water.
Never use boiling water.
Periodically inspect the connections, clamps, non-return valve and discharge pipework and keep the carbon breather unobstructed.
Never Put These Through a Macerator
-
Wet wipes — including “flushable” wipes
-
Tampons or sanitary products
-
Nappies
-
Paper towels
-
Rags or cloth
-
Cotton buds
-
Food scraps
-
Cooking fats
-
Oils or grease
-
Excessive hair
-
Foreign objects
-
Strong acids
-
Solvents
-
Aggressive drain cleaners
Human waste, toilet paper and normal domestic wastewater only.
24-Month GreenLeaf Warranty
Every GreenLeaf FORCE 700 Max includes a 24-month return-to-base warranty for residential use.
The warranty covers manufacturing faults arising under normal use and correct installation.
The warranty does not cover damage caused by blockages, foreign objects, wet wipes, sanitary products, food waste, oils, fats or grease, unsuitable chemicals, incorrect installation, failure to install the supplied non-return valve correctly, external water/weather exposure or commercial use.
Why GreenLeaf?
Macerator pumps are what we do.
GreenLeaf has 20+ years of hands-on experience with macerator pumps, and when you're dealing with a more demanding installation, having access to people who actually understand these systems matters.
Our team is available 7 days a week for:
Pump selection • Installation questions • Troubleshooting • Parts • Servicing • Warranty support
If you're unsure whether you need a Flow or Force model, give us a call before ordering.
GreenLeaf Pumps
6 MacAulay Street
Eden Terrace
Auckland 1021
0800 110 063
sales@greenleafpumps.co.nz
GreenLeaf FORCE 700 Max
When the installation demands more.
700W | 150 L/min | 11m Vertical | 110m Horizontal
FREE NZ SHIPPING • 24-MONTH WARRANTY • 7-DAY SUPPORT
High-performance maceration. Backed by New Zealand's macerator specialists.
