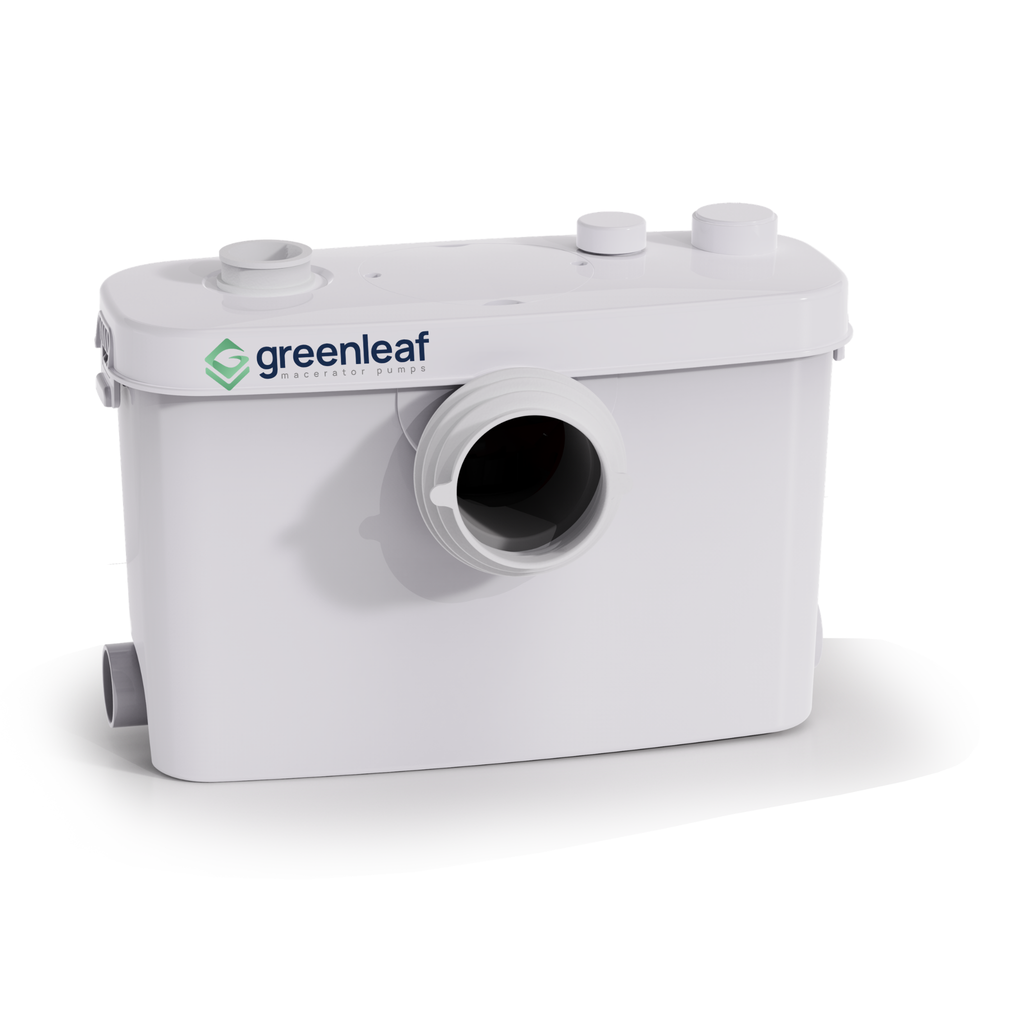

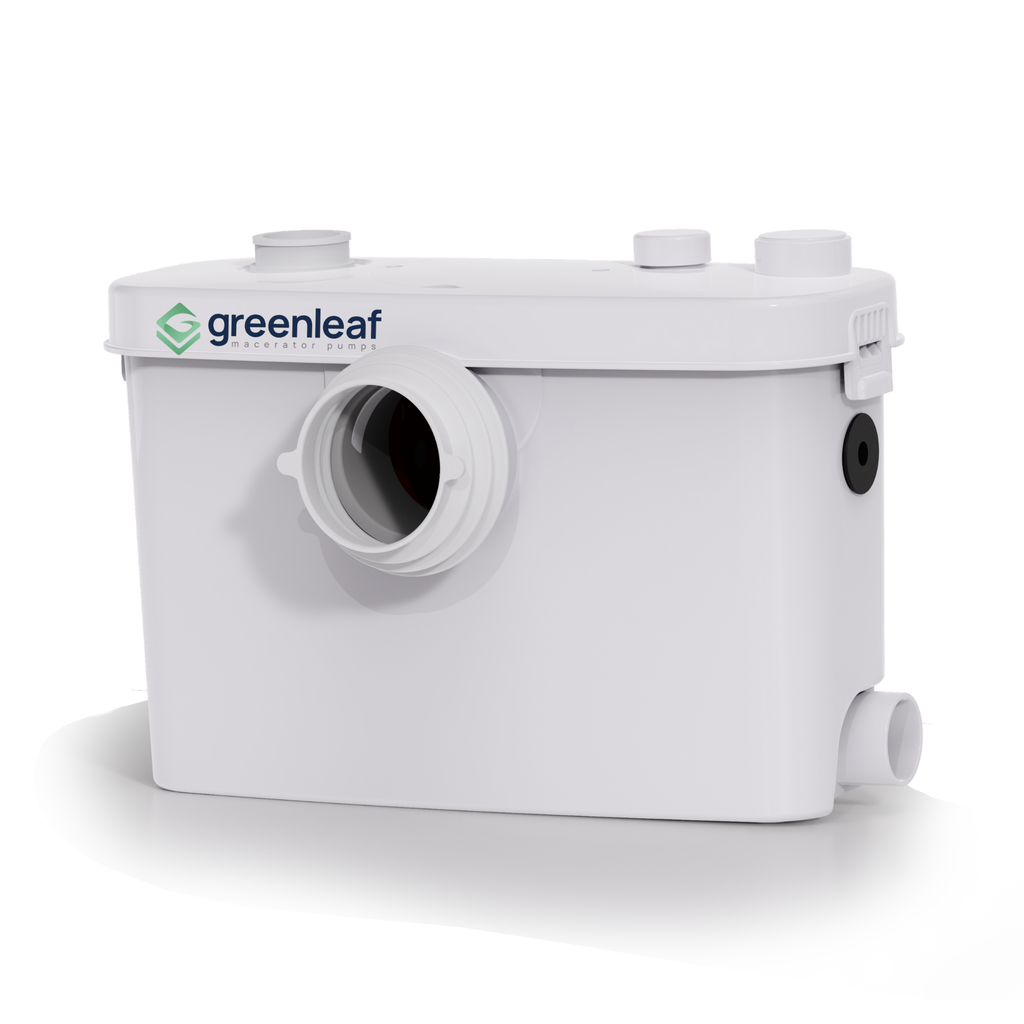

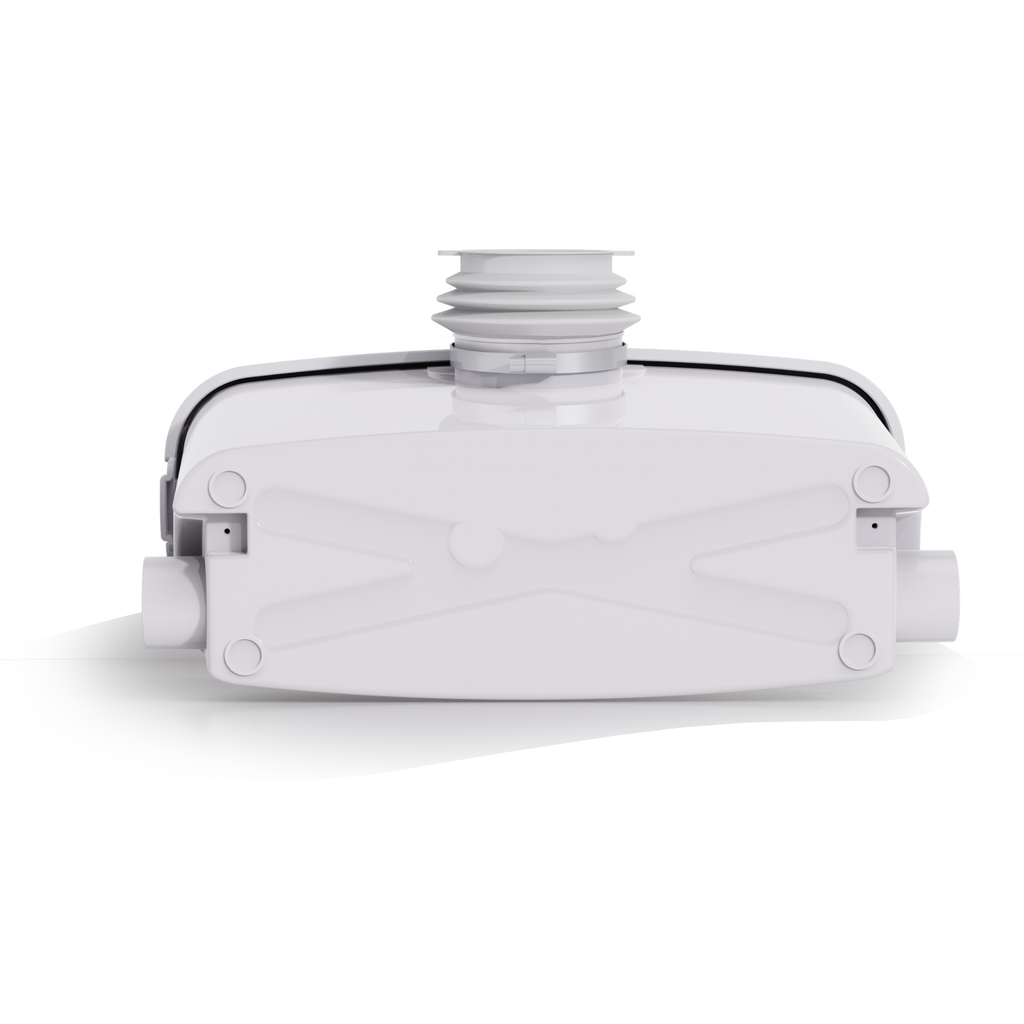

GreenLeaf Flow 400 SlimLine Macerator Pump
FREE NZ SHIPPING | 24-MONTH WARRANTY | 7-DAY NZ SUPPORT
Compact design. Serious performance.
The GreenLeaf Flow 400 SlimLine is the compact model in our new-generation Flow Series — designed for bathrooms, kitchens, laundries, ensuites, sleepouts, tiny homes and renovations where conventional gravity drainage isn't practical.
Its slimline body makes it ideal for installing behind a toilet, inside cabinetry or in tight spaces, while the powerful 400W macerating system can pump wastewater up to 7 metres vertically or 70 metres horizontally.
Suitable for almost any domestic wastewater fixture
The Flow 400 SlimLine can accept wastewater from one toilet plus normal domestic greywater fixtures, including:
This makes the Flow 400 an excellent solution for adding plumbing where access to the main sewer line would otherwise be difficult or expensive.
One toilet only may be connected to each macerator pump.
Flow 400 Highlights
-
400W macerator motor
-
Up to 115 L/min flow
-
Up to 7m vertical pumping
-
Up to 70m horizontal pumping
-

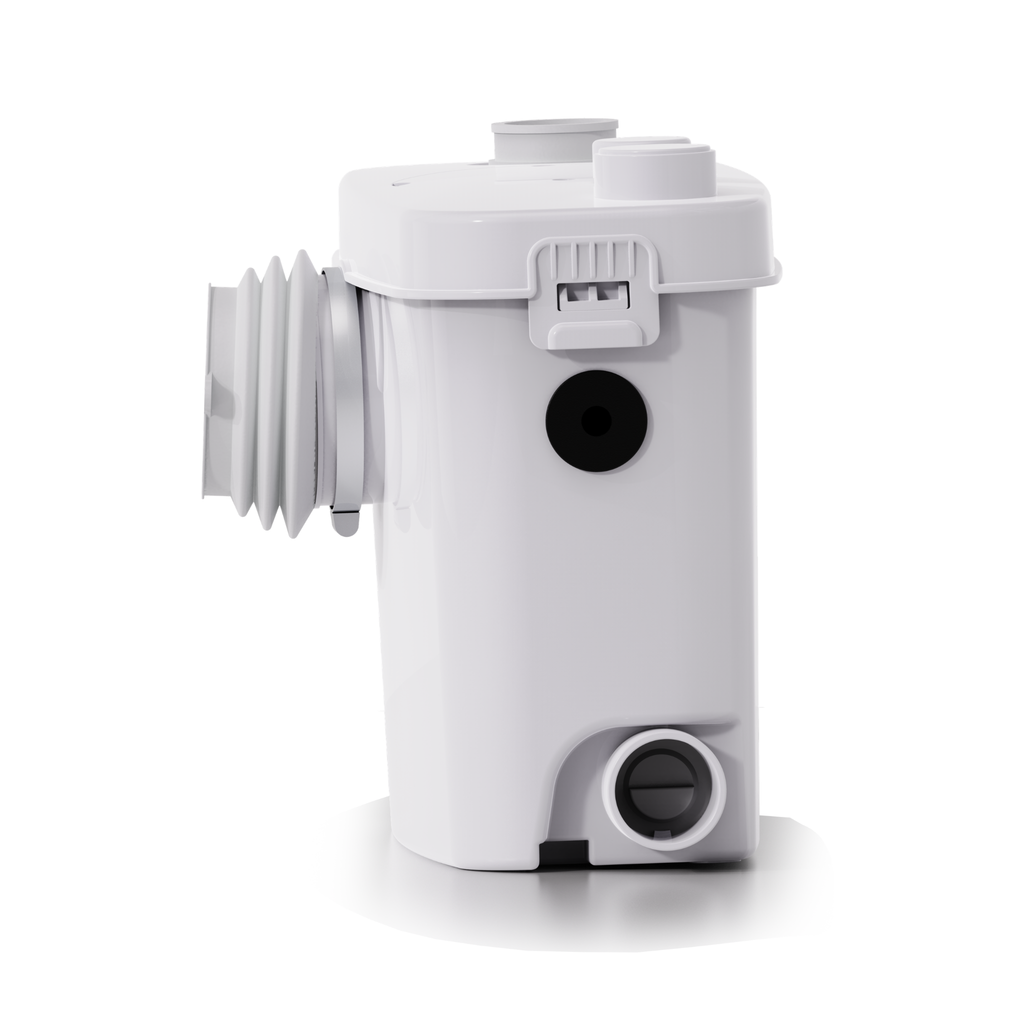

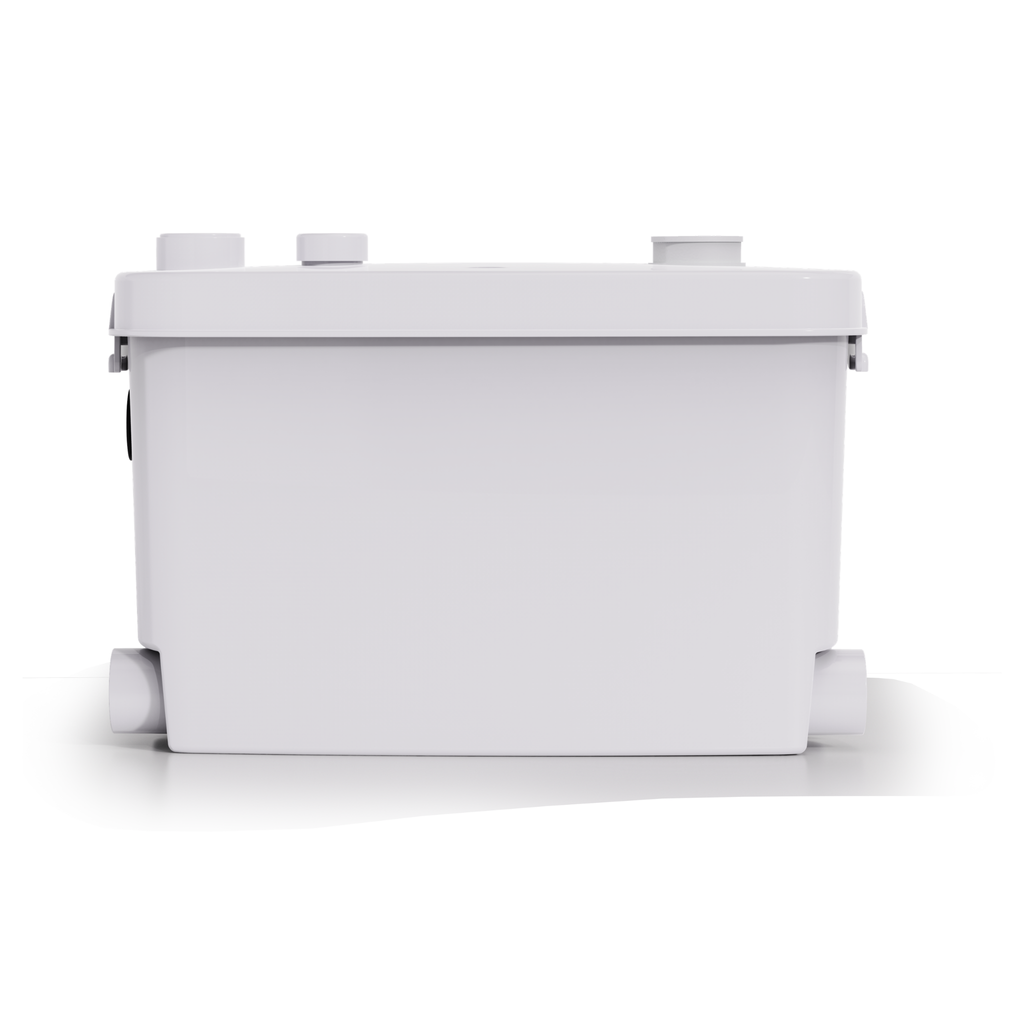

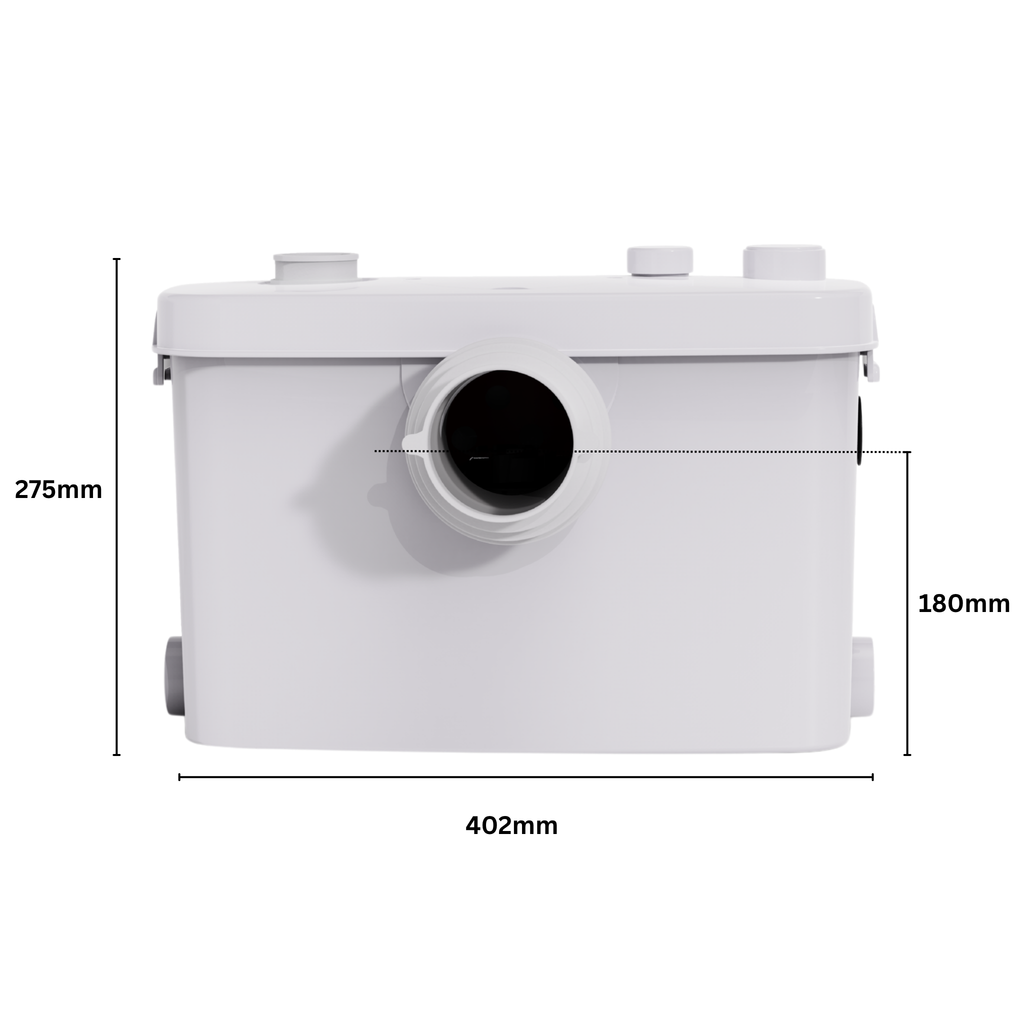

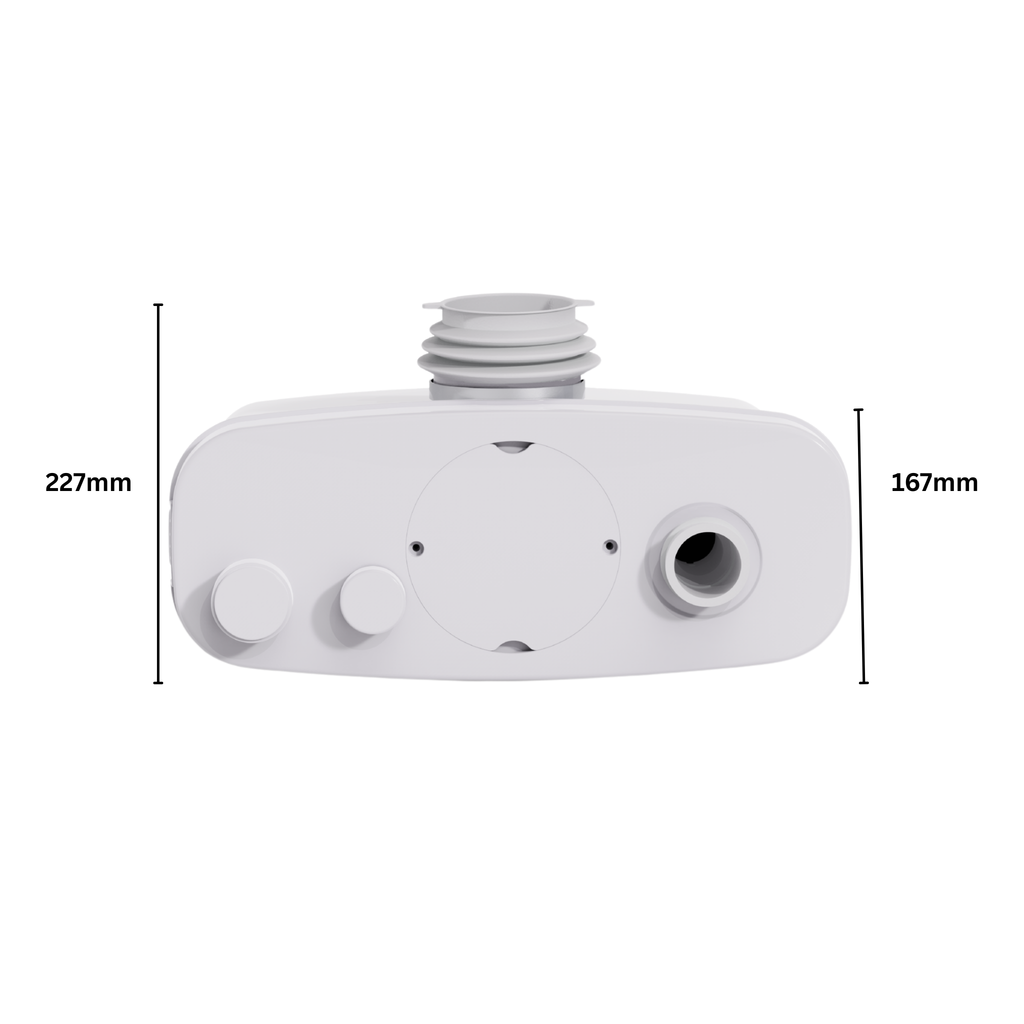

Slimline compact body
-
Automatic start / stop
-

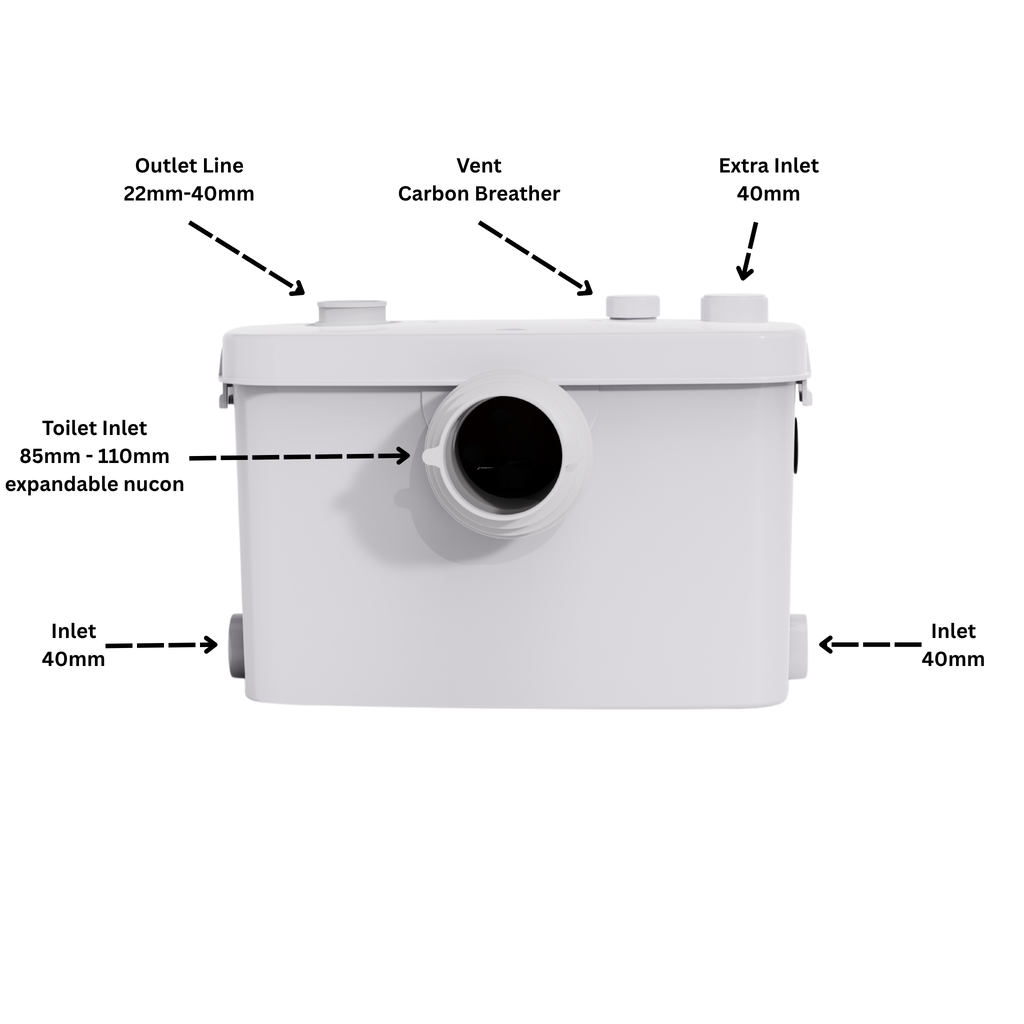

Multiple wastewater inlets
-
23 / 28 / 32 / 44mm discharge options
-
Integrated active-carbon vent
-
Top-access servicing
-
80°C maximum water temperature
-
100°C thermal protection
-
IPX4 protection
-
Non-return valve included
-
24-month residential warranty
-
Free NZ shipping
Technical Specifications
Power: 400W
Power Supply: 220–240V / 50Hz
Maximum Flow: 115 L/min
Maximum Vertical Lift: 7m
Maximum Horizontal Distance: 70m
Maximum Water Temperature: 80°C
Thermal Protection: 100°C
Protection Rating: IPX4
Operation: Automatic
Discharge: 23 / 28 / 32 / 44mm
Application: Residential wastewater and maceration
Actual pumping performance depends on pipe size, vertical lift, horizontal distance, bends and the overall installation layout.
Kitchens & Laundries
Yes — the Flow 400 SlimLine can be used with kitchen and laundry fixtures.
For reliable operation, macerator pumps should only receive normal wastewater.
Do not allow food scraps, cooking fats, oils, grease or foreign objects to enter the pump. Kitchen sinks should have a suitable waste strainer fitted.
Do not connect a food waste disposal unit unless an appropriate filtration system is installed.
Important Installation Points
For the best performance:
-
Greywater pipework should have approximately a 2% fall toward the pump
-
Showers generally require around 150mm of available height to achieve adequate gravity fall
-

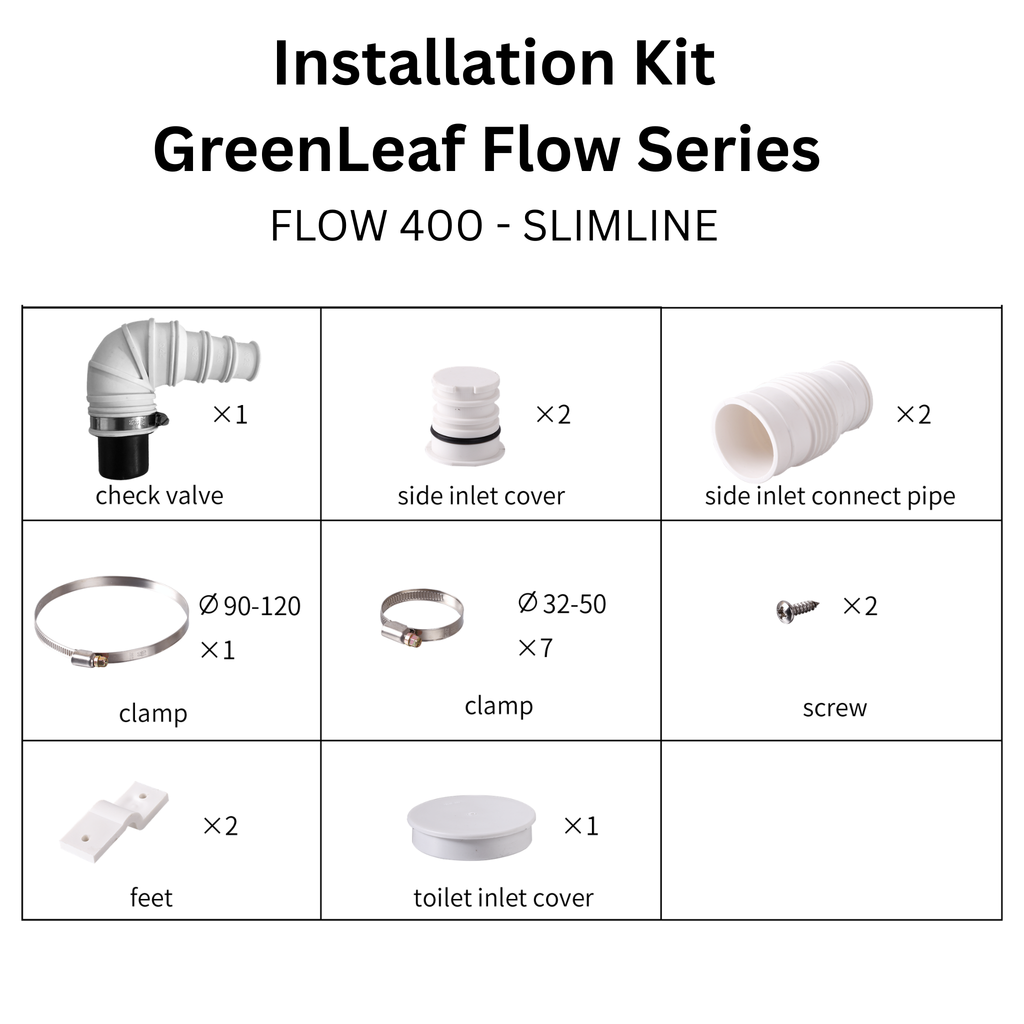

Install the supplied non-return valve directly at the pump discharge
-
Complete vertical discharge pipework before long horizontal runs
-
Use sweeping bends or 2 x 45° bends where practical
-
Keep the pump accessible for future servicing
-
Unused inlet connections must remain correctly sealed
We strongly recommend installation by a qualified plumber or appropriate trade professional.
Not sure about your installation?
Call us.
We are available 7 days a week and are always happy to talk through your proposed setup before you purchase.
0800 110 063
Simple Preventative Maintenance
Looking after a macerator is easy and can significantly reduce the chance of residue build-up and blockages.
Every 3–4 months:
Run a Sugar Soap cleaning solution through the pump, allow it time to work, then flush thoroughly with warm water.
Never put the following through a macerator:
-
Wet wipes — including “flushable” wipes
-
Tampons or sanitary products
-
Nappies
-
Paper towels
-
Food
-
Cooking fats, oils or grease
-
Rags or cloth
-
Cotton buds
-
Excessive hair
-
Foreign objects
-
Boiling water
-
Strong acids or aggressive drain cleaners
Human waste, toilet paper and normal household wastewater only.
24-Month GreenLeaf Warranty
Every GreenLeaf Flow 400 SlimLine includes a 24-month return-to-base warranty for residential use.
The warranty covers manufacturing faults under normal use when the pump has been correctly installed and operated.
The warranty does not cover damage caused by:
-
Blockages or foreign objects
-
Wet wipes or sanitary products
-
Food, fats, grease or oils
-
Incorrect installation
-
Missing or incorrectly installed non-return valve
-
External water or weather exposure
-
Boiling water or unsuitable chemicals
-
Misuse or commercial applications
Why Buy GreenLeaf?
A macerator pump isn't something you want to buy from a seller who disappears after the sale.
At GreenLeaf Pumps, macerators are what we do.
We have 20+ years of hands-on experience with macerator pumps and have been supplying and supporting GreenLeaf pumps throughout New Zealand for years.
Our customers have direct access to our team 7 days a week for product selection, installation questions, troubleshooting and after-sales support.
We also stock parts and provide servicing from our Auckland premises.
GreenLeaf Pumps
6 MacAulay Street
Eden Terrace
Auckland 1021
0800 110 063
sales@greenleafpumps.co.nz
If you're unsure which pump you need, give us a call before ordering — we'll help you get it right.
